Maps

Put your data on the map​

Use the Maps app to view item locations and geometry, superimposed over basemap imagery.

Control the data you see with layers and layer styles. The Layers panel makes it easy to turn layers and individual styles on/off as needed, enabling you to change your view and shift focus between different datasets at any time. Open items to view their details in a side panel, which can be resized and minimised to accommodate different situations and screen sizes.

Switch basemaps to change the background imagery and see your items in new contexts. Use the supplied basemaps or create your own by connecting to various online map services, e.g. Google Maps, OpenStreetMaps.

Navigate the map by mouse, keyboard or touch. Use the provided map tools to select items and accurately measure dimensions in real-time.

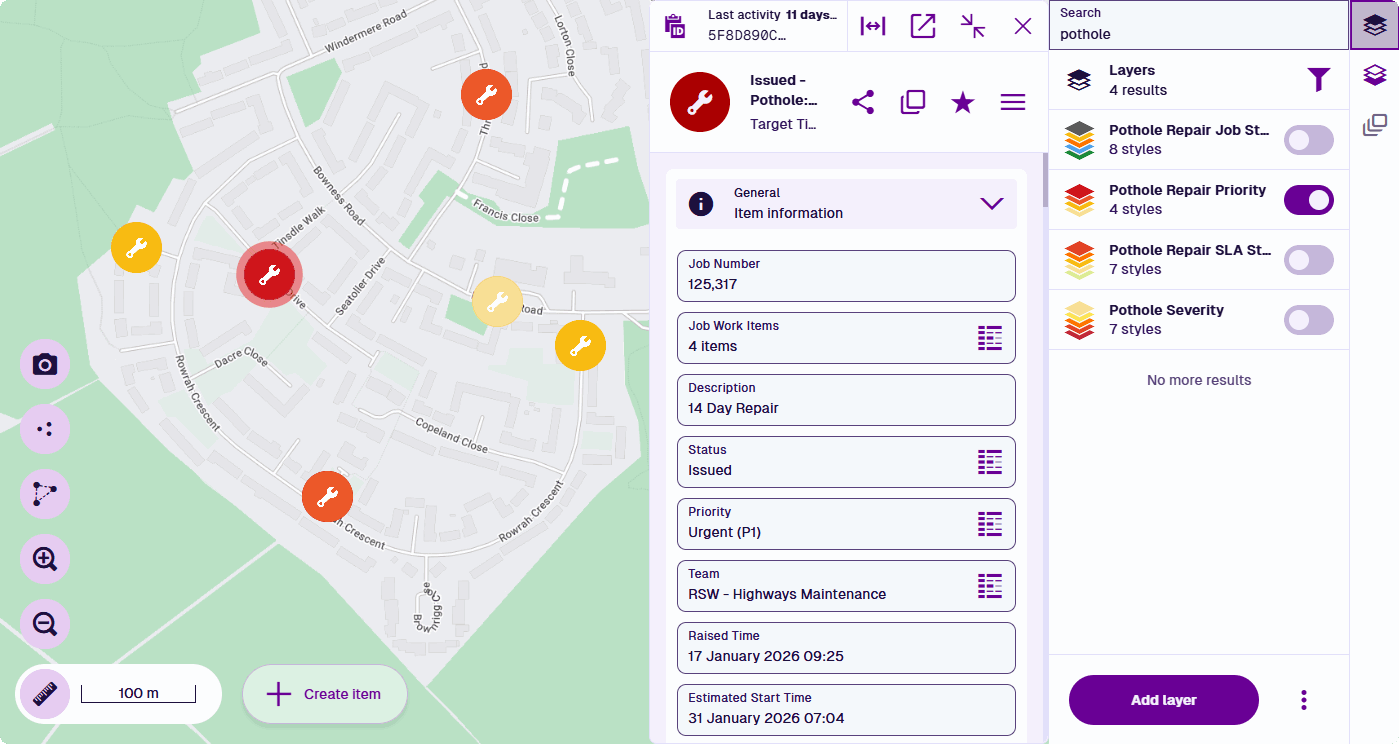

An overview of the Maps app, with layers enabled, items showing on the basemap and the Item Viewer displayed on the left

How to access​

To open the Maps app in CausewayOne Asset Management:

  1. Sign in to CausewayOne.

  2. Use the top bar to switch companies if necessary.

  3. Select Asset Management in the purple sidebar.

  4. Select Maps in the left panel or the Overview page.

Access from other places​

When you're working with a set of items in another Asset App, it's often possible to open those items in the Maps app. Want to see all jobs in progress? All street lights maintained by a particular team? All defects reported within an operational zone in the last 12 months? No problem!

Data Explorer​

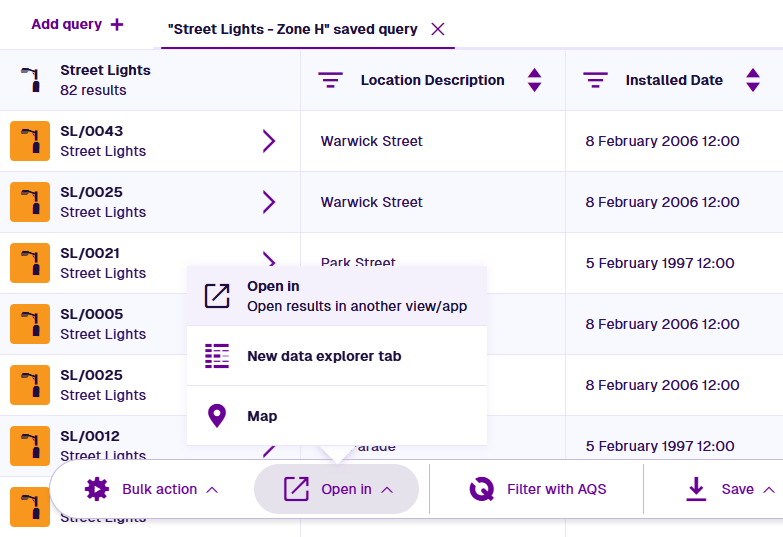

To open the results of a query from the Data Explorer app, select Open with in the bottom toolbar and choose Map.

Hubs​

To open a set of items from the Hubs app, select the button beside the relevant data point and choose Maps.

Item details​

To open the contents of any canvas section that lists items related to the current item (e.g. Jobs, Reports), select the section's Open with button and choose Maps.
