Connected To

Check whether items are linked together​

Each node takes a single input to filter the queried items.

  • Connected to - items qualify if they're linked to at least one matching item.

  • Not connected to - items qualify if they're not linked to any matching item.

Usage​

These nodes are conditions, so you can add them directly after the root node or a logical node.

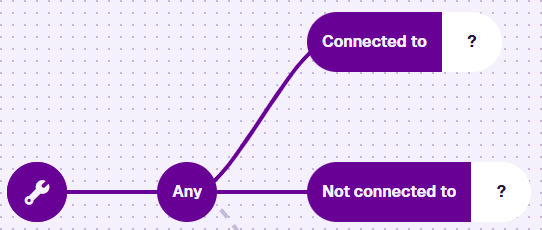

A root node connected to an Any node, which branches to a Connected to node and a Not connected to node

Compatibility​

The single segment must hold an Item node, referencing the Link attribute to check.

Select the node and then Open in Pathfinder. Use the Pathfinder to perform one or more "hops" to visit a linked design/interface, then choose the Link attribute to check there.

info

This Item node is different to the value node variant, despite sharing its name and icon.

Options​

Select the node to access its options:

  • Swap - use another comparison node. If any segments are populated, only compatible nodes are listed.

  • Delete - remove the node from the query branch.

Examples​

Connected to​

Fetch all defects that have reporters.

In AQS terms:

Fetch items of the Defects interface where their Reporters Link attribute is populated by at least one item of the Contacts design.

A Connected to node linked to a Contacts item
See JSON code

This code may reference designs, interfaces, attributes or items that don't exist in your company project.

{
  "type": "Query",
  "properties": {
    "collectionCode": "Live",
    "dodiCode": "designInterfaces_defects"
  },
  "children": [
    {
      "type": "ConnectedTo",
      "children": [
        {
          "type": "Item",
          "properties": {
            "path": "root.attributes_defectsReporters"
          }
        }
      ]
    }
  ]
}

Not connected to​

Fetch all inspections with no raised jobs.

In AQS terms:

Fetch items of the Inspections interface where their Raised Jobs Link attribute is not populated with any items of the Jobs interface.

A Not connected to node linked to a Jobs item
See JSON code

This code may reference designs, interfaces, attributes or items that don't exist in your company project.

{
  "type": "Query",
  "properties": {
    "collectionCode": "Live",
    "dodiCode": "designInterfaces_inspections"
  },
  "children": [
    {
      "type": "NotConnectedTo",
      "children": [
        {
          "type": "Item",
          "properties": {
            "path": "root.attributes_inspectionsRaisingJobsRaisedJobs"
          }
        }
      ]
    }
  ]
}
