Equals

Check whether two values match

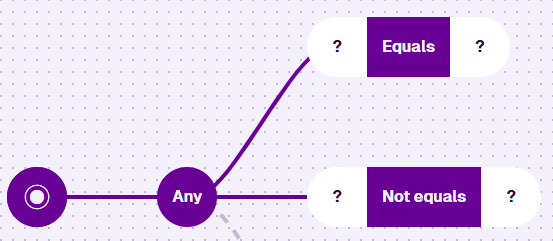

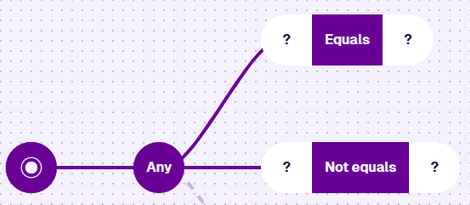

Each node takes two inputs to filter the queried items.

• Equals - items qualify if both inputs match.

• Not equals - items qualify if both inputs differ.

Usage

These nodes are conditions, so you can add them directly after the root node or a logical node.

Compatibility

Both segments must hold the same value type. One reads from the queried items, the other provides the value to compare against. Attribute and Property can't be paired.

Node	Accepted Value Type	Notes
Attribute	Any except Geometry	Use the Pathfinder to choose an attribute, on the queried item or a linked item
Property	Design code, Item Id	Not compatible with Last edit date. Use the Pathfinder to choose one, on the queried item or a linked item
Count	Number
Length	Number
Value nodes	Same type, except Geometry	If the node holds multiple values: Equals matches any of them, Not equals matches none
Arithmetic nodes	Number

info

To compare Geometry values, see Geographic comparisons.

Options

Select the node to access its options:

• Swap - use another comparison node. If any segments are populated, only compatible nodes are listed.

• Delete - remove the node from the query branch.

• Link negated - invert the condition. Different from swapping to the opposite node. Only available when a segment references a linked design/interface.

Examples

Equals

Fetch all defects that are awaiting inspection.

In AQS terms:

Fetch items of the Defects interface where their Status attribute equals Awaiting Inspection.

To build this step-by-step, see Example 1 - Check an attribute.

See JSON code

This code may reference designs, interfaces, attributes or items that don't exist in your company project.

{
  "type": "Query",
  "properties": {
    "attributes": ["attributes_itemsTitle", "attributes_itemsSubtitle", "attributes_defectsStatus"],
    "collectionCode": "Live",
    "dodiCode": "designInterfaces_defects"
  },
  "children": [
    {
      "type": "Equals",
      "children": [
        {
          "type": "Attribute",
          "properties": {
            "attributeCode": "attributes_defectsStatus"
          }
        },
        {
          "type": "AlloyId",
          "properties": {
            "value": ["5c8bdfb58ae862230019dc1f"]
          }
        }
      ]
    }
  ]
}

Not equals

Fetch all jobs that aren't completed.

In AQS terms:

Fetch items of the Jobs interface where their Status attribute does not equal Completed.

See JSON code

This code may reference designs, interfaces, attributes or items that don't exist in your company project.

{
  "type": "Query",
  "properties": {
    "collectionCode": "Live",
    "dodiCode": "designInterfaces_jobs"
  },
  "children": [
    {
      "type": "NotEquals",
      "children": [
        {
          "type": "Attribute",
          "properties": {
            "attributeCode": "attributes_tasksStatus"
          }
        },
        {
          "type": "AlloyId",
          "properties": {
            "value": ["5bc5bdd281d088d177342c76"]
          }
        }
      ]
    }
  ]
}
