Floor node

​

Description

The Floor node takes one number as input and rounds it down to the previous whole number, e.g. 9.98 becomes 9

Usage

The Floor node is a function, so it can be added to the segments of comparison nodes and other functions.

It can be:

• added to these comparison nodes:

  • ​ Equals
  • ​ Greater than
  • ​ Less than
  • ​ Not Equals

• compared against, and populated with, these nodes:

  • ​ Attribute (of Number type)
  • ​ Count
  • ​ Number
  • ​ Length
  • all other Arithmetic nodes

Configuration

• ​ Swap - change the comparison node. If any segments hold values, they'll remain but the node types offered will be limited.

• ​ Delete - remove the node.

Example

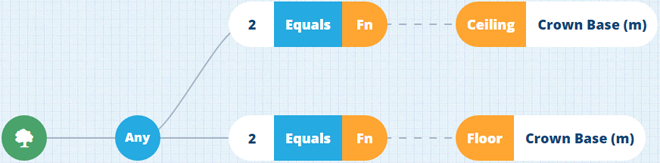

Fetch all Trees with a crown base of 2 metres when rounded up or down

In full detail:

Fetch items of the Trees design where the ceiling of their Crown Base (m) attribute equals 2 OR the floor of their Crown Base (m) attribute equals 2

See JSON code

This code may reference designs, interfaces, attributes or items that don't exist in your Alloy database.

{
  "type": "Query",
  "properties": {
    "collectionCode": "Live",
    "dodiCode": "designs_trees"
  },
  "children": [
    {
      "type": "Or",
      "children": [
        {
          "type": "Equals",
          "children": [
            {
              "type": "Number",
              "properties": {
                "value": [2]
              }
            },
            {
              "type": "Ceiling",
              "children": [
                {
                  "type": "Attribute",
                  "properties": {
                    "attributeCode": "attributes_treesCrownBase"
                  }
                }
              ]
            }
          ]
        },
        {
          "type": "Equals",
          "children": [
            {
              "type": "Number",
              "properties": {
                "value": [2]
              }
            },
            {
              "type": "Floor",
              "children": [
                {
                  "type": "Attribute",
                  "properties": {
                    "attributeCode": "attributes_treesCrownBase"
                  }
                }
              ]
            }
          ]
        }
      ]
    }
  ]
}
