Geographic comparisons

Check how two areas overlap​

Each node takes two geometry inputs to filter the queried items.

  • Within - items qualify if the first area is completely inside the second.

  • Intersects - items qualify if the first area overlaps the second (or is inside it).

  • Disjoint - items qualify if the first area is completely outside the second.

Usage​

These nodes are conditions, so you can add them directly after the root node or a logical node.

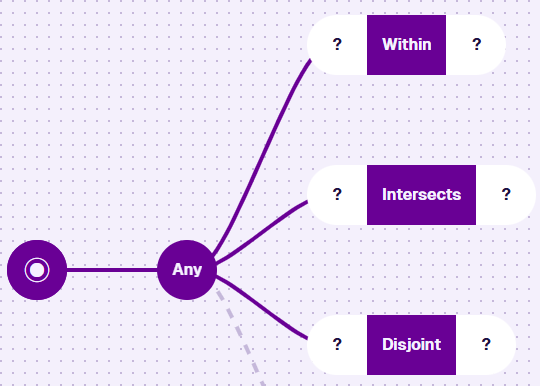

A root node connected to an Any node, which branches to a Within node, an Intersects node and a Disjoint node, each with two empty segments

Compatibility​

Both segments must hold geometry. One must be an Attribute, the other a fixed value.

NodeAccepted Value TypeNotes
AttributeGeometryUse the Pathfinder to choose a Geometry attribute, on the queried item or a linked item
GeoJSONGeometryA fixed area you draw or enter as code
Value From Item AttributeGeometryThe Geometry attribute of a specific item - see Locations of Interest for a common use

Options​

Select the node to access its options:

  • Swap - use another comparison node. If any segments are populated, only compatible nodes are listed.

  • Delete - remove the node from the query branch.

  • Link negated - invert the condition. Different from swapping to the opposite node. Only available when a segment references a linked design/interface.

info

Enabling this on Within or Intersects isn't the same as swapping to Disjoint (or vice versa) - see Link negated for why.

Examples​

Within​

Fetch all bollards within this area.

In AQS terms:

Fetch items of the Bollards interface where their Geometry attribute falls completely within the defined area.

To build this step-by-step, see Example 2 - Geographic.

A Within node comparing the Geometry attribute to a drawn Polygon area
See JSON code

This code may reference designs, interfaces, attributes or items that don't exist in your company project.

{
  "type": "Query",
  "properties": {
    "collectionCode": "Live",
    "dodiCode": "designs_bollards"
  },
  "children": [
    {
      "type": "GeomWithin",
      "children": [
        {
          "type": "Attribute",
          "properties": {
            "attributeCode": "attributes_itemsGeometry"
          }
        },
        {
          "type": "Geometry",
          "properties": {
            "value": {
              "type": "Polygon",
              "coordinates": [
                [
                  [-1.528451, 52.291276],
                  [-1.532371, 52.290544],
                  [-1.535095, 52.288647],
                  [-1.534088, 52.28752],
                  [-1.527428, 52.290062],
                  [-1.528451, 52.291276]
                ]
              ]
            }
          }
        }
      ]
    }
  ]
}

Intersects​

Fetch all assets whose geometry overlaps with this area.

In AQS terms:

Fetch items of the Assets interface where their Geometry attribute intersects the defined area.

An Intersects node comparing the Geometry attribute to a drawn Polygon area
See JSON code

This code may reference designs, interfaces, attributes or items that don't exist in your company project.

{
  "type": "Query",
  "properties": {
    "collectionCode": "Live",
    "dodiCode": "designInterfaces_assets"
  },
  "children": [
    {
      "type": "GeomIntersects",
      "children": [
        {
          "type": "Attribute",
          "properties": {
            "attributeCode": "attributes_itemsGeometry"
          }
        },
        {
          "type": "Geometry",
          "properties": {
            "value": {
              "type": "Polygon",
              "coordinates": [
                [
                  [-1.528451, 52.291276],
                  [-1.532371, 52.290544],
                  [-1.535095, 52.288647],
                  [-1.534088, 52.28752],
                  [-1.527428, 52.290062],
                  [-1.528451, 52.291276]
                ]
              ]
            }
          }
        }
      ]
    }
  ]
}

Disjoint​

Fetch all inspections outside of this area.

In AQS terms:

Fetch items of the Inspections interface where their Geometry attribute falls completely outside the defined area.

A Disjoint node comparing the Geometry attribute to a drawn Polygon area
See JSON code

This code may reference designs, interfaces, attributes or items that don't exist in your company project.

{
  "type": "Query",
  "properties": {
    "collectionCode": "Live",
    "dodiCode": "designInterfaces_inspections"
  },
  "children": [
    {
      "type": "GeomDisjoint",
      "children": [
        {
          "type": "Attribute",
          "properties": {
            "attributeCode": "attributes_itemsGeometry"
          }
        },
        {
          "type": "Geometry",
          "properties": {
            "value": {
              "type": "Polygon",
              "coordinates": [
                [
                  [-1.528451, 52.291276],
                  [-1.532371, 52.290544],
                  [-1.535095, 52.288647],
                  [-1.534088, 52.28752],
                  [-1.527428, 52.290062],
                  [-1.528451, 52.291276]
                ]
              ]
            }
          }
        }
      ]
    }
  ]
}
