Intersects node

​

Description​

The Intersects node takes two geographic inputs. It filters the items in your query by checking if the first area overlaps the second area (or falls completely within it).

It produces similar results to the Within node but also includes items with line or polygon geometry (see Geometry types) that partially overlaps the second area's border.

Usage​

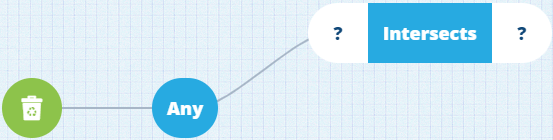

The Intersects node is a condition, so it can be added to the query branch directly after the root node or a logical node.

alt text
alt text

It can be populated with these nodes:

Configuration​

alt text

  • ​ Swap - change the comparison node. If any segments hold values, they'll remain but the node types offered will be limited.

  • ​ Delete - remove the node from the query.

  • Link negated - enable this to invert the condition imposed by the node. Items must now fail the condition to be included in the query results.

Note

If you enable Link negated when comparing an Attribute node, the query will also fetch items where the attribute holds no value at all. If this isn't desirable, use the Disjoint node instead!

Example​

Fetch all assets whose geometry overlaps with this area

In full detail:

Fetch items of the Assets interface where their Geometry attribute intersets the defined area

alt text
See JSON code
{
  "type": "Query",
  "properties": {
    "collectionCode": "Live",
    "dodiCode": "designInterfaces_assets"
  },
  "children": [
    {
      "type": "GeomIntersects",
      "children": [
        {
          "type": "Attribute",
          "properties": {
            "attributeCode": "attributes_itemsGeometry"
          }
        },
        {
          "type": "Geometry",
          "properties": {
            "value": {
              "type": "Polygon",
              "coordinates": [
                [
                  [-1.528451, 52.291276],
                  [-1.532371, 52.290544],
                  [-1.535095, 52.288647],
                  [-1.534088, 52.28752],
                  [-1.527428, 52.290062],
                  [-1.528451, 52.291276]
                ]
              ]
            }
          }
        }
      ]
    }
  ]
}
