Not Connected To node

​

Description​

The Not connected to node takes one input. It filters the items in your query by checking if they're connected to items in another design/interface via the Link attribute you specify.

Usage​

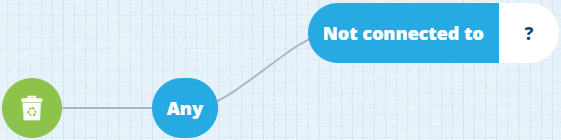

The Not connected to node is a condition, so it can be added to the query branch directly after the root node or a logical node.

alt text
alt text

It can be populated with an Item node.

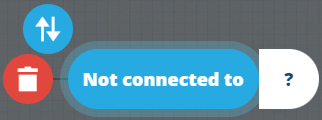

Configuration​

alt text

  • ​ Swap - change the comparison node. If any segments hold values, they'll remain but the node types offered will be limited.

  • ​ Delete - remove the node from the query.

Example​

Fetch all inspections with no raised jobs

In full detail:

Fetch items of the Inspections interface where their Raised Jobs Link attribute is not populated with any items of the Jobs interface

alt text
See JSON code
{
  "type": "Query",
  "properties": {
    "collectionCode": "Live",
    "dodiCode": "designInterfaces_inspections"
  },
  "children": [
    {
      "type": "NotConnectedTo",
      "children": [
        {
          "type": "Item",
          "properties": {
            "path": "root.attributes_inspectionsRaisingJobsRaisedJobs"
          }
        }
      ]
    }
  ]
}
