Not Equals node

Description​

The Not equals node takes two inputs. It filters the items in your query by checking if the first input is not equal to the second input.

Usage​

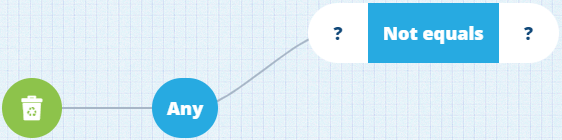

This node is a condition. It can be added to the query branch directly after the root node or a logical node.

alt text

It can be populated with these nodes:

Options​

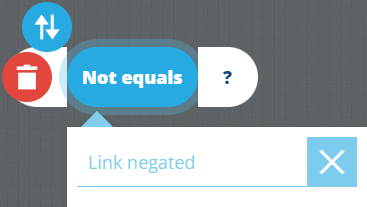

Select the node to access its options:

  • Swap - use a different comparison node. Any populated segments are kept, which limits the options.

  • Delete - remove the node from the query branch.

  • Link negated - enable this to invert the condition imposed by the node. Items must now fail the condition to be included in the query results.

info

If you enable Link negated when comparing an Attribute node, the query will also fetch items where the attribute holds no value at all. If this isn't desirable, use the Equals node instead!

Example​

Fetch all jobs that aren't completed

In full detail:

Fetch items of the Jobs interface where their Status attribute does not equal Completed

alt text
See JSON code
{
  "type": "Query",
  "properties": {
    "collectionCode": "Live",
    "dodiCode": "designInterfaces_jobs"
  },
  "children": [
    {
      "type": "NotEquals",
      "children": [
        {
          "type": "Attribute",
          "properties": {
            "attributeCode": "attributes_tasksStatus"
          }
        },
        {
          "type": "AlloyId",
          "properties": {
            "value": ["5bc5bdd281d088d177342c76"]
          }
        }
      ]
    }
  ]
}
