Starts With node

​

Description​

The Starts with node takes two inputs. It filters the items in your query by checking if the specified attribute begins with the inputted text string, e.g. hello

Usage​

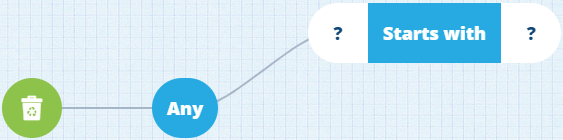

The Starts with node is a condition, so it can be added to the query branch directly after the root node or a logical node.

alt text
alt text

It can be populated with these nodes:

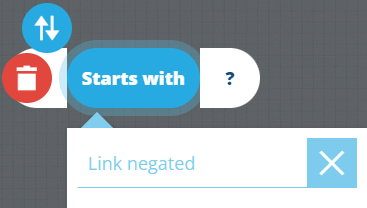

Configuration​

alt text

  • ​ Swap - change the comparison node. If any segments hold values, they'll remain but the node types offered will be limited.

  • ​ Delete - remove the node from the query.

  • Link negated - enable this to invert the condition imposed by the node. Items must now fail the condition to be included in the query results.

Example​

Fetch all street lights with a unit number starting with SL/002

In full detail:

Fetch items of the Street Lights design where their Unit Number attribute starts with SL/002

alt text
See JSON code

This code may reference designs, interfaces, attributes or items that don't exist in your Alloy database.

{
  "type": "Query",
  "properties": {
    "collectionCode": "Live",
    "dodiCode": "designs_streetLights"
  },
  "children": [
    {
      "type": "StartsWith",
      "children": [
        {
          "type": "Attribute",
          "properties": {
            "attributeCode": "attributes_streetLightingUnitsUnitNumber"
          }
        },
        {
          "type": "String",
          "properties": {
            "value": ["SL/002"]
          }
        }
      ]
    }
  ]
}
