Description​

The Within node takes two geographic inputs. It filters the items in your query by checking if the first area falls completely within the second area.

Usage​

The Within node is a condition, so it can be added to the query branch directly after the root node or a logical node.

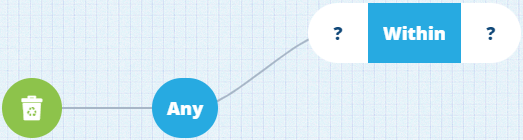

alt text
alt text

It can be populated with these nodes:

Configuration​

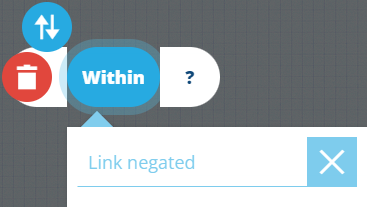

alt text

  • ​ Swap - change the comparison node. If any segments hold values, they'll remain but the node types offered will be limited.

  • ​ Delete - remove the node from the query.

  • Link negated - enable this to invert the condition imposed by the node. Items must now fail the condition to be included in the query results.

Note

If you enable Link negated when comparing an Attribute node, the query will also fetch items where the attribute holds no value at all. If this isn't desirable, use the Disjoint node instead!

Example​

Fetch all bollards within this area

In full detail:

Fetch items of the Bollards interface where their Geometry attribute falls completely within the defined area

To see this example built step-by-step, see Example 2 - Geographic.

alt text
See JSON code

This code may reference designs, interfaces, attributes or items that don't exist in your Alloy database.

{
  "type": "Query",
  "properties": {
    "collectionCode": "Live",
    "dodiCode": "designs_bollards"
  },
  "children": [
    {
      "type": "GeomWithin",
      "children": [
        {
          "type": "Attribute",
          "properties": {
            "attributeCode": "attributes_itemsGeometry"
          }
        },
        {
          "type": "Geometry",
          "properties": {
            "value": {
              "type": "Polygon",
              "coordinates": [
                [
                  [-1.528451, 52.291276],
                  [-1.532371, 52.290544],
                  [-1.535095, 52.288647],
                  [-1.534088, 52.28752],
                  [-1.527428, 52.290062],
                  [-1.528451, 52.291276]
                ]
              ]
            }
          }
        }
      ]
    }
  ]
}
