Attribute node

​

Description​

The Attribute node represents the value of a specific attribute on a queried item, e.g. the Team Name attribute of a Teams item

The attribute can be on:

  • the design/interface being queried, e.g. the Teams design

  • a design/interface reachable from the one being queried (via one or more Link attributes),
    e.g. the Teams design → its Members attribute → the Team Members design

It's similar to a Value from item attribute node but has a narrower scope.

See comparison
Attribute NodeValue From Item Attribute Node
What items can be referenced?All qualifying items fetched by the queryAny items from a specific design/interface
Can you reference specific items?NoYes
Can you reference non-qualifying items?NoYes

Usage​

The Attribute node is an input, so it can be added to the segments of comparison nodes and functions.

alt text
alt text

It can be added to any comparison node (depending on the value type held by the attribute).

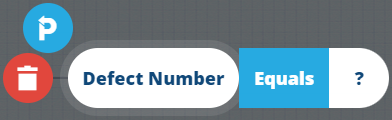

Configuration​

alt text

The node defaults to the first attribute on the design/interface being queried.

  • ​ Open in Pathfinder - use the Pathfinder to change the selected attribute.

  • ​ Delete - remove the node from the segment.

Example​

Fetch all defects that are awaiting inspection

In full detail:

Fetch items of the Defects interface where their Status attribute equals Awaiting Inspection

To see this example built step-by-step, see Example 1 - Check attribute.

alt text
See JSON code
{
  "type": "Query",
  "properties": {
    "collectionCode": "Live",
    "dodiCode": "designInterfaces_defects"
  },
  "children": [
    {
      "type": "Equals",
      "children": [
        {
          "type": "Attribute",
          "properties": {
            "attributeCode": "attributes_defectsStatus"
          }
        },
        {
          "type": "AlloyId",
          "properties": {
            "value": ["5c8bdfb58ae862230019dc1f"]
          }
        }
      ]
    }
  ]
}
