Property node

Description​

The Property node represents the value of the chosen property on queried items, or on items linked to the queried items.

The available properties are:

  • Design code - the unique name of the item's design/interface, e.g. designs_streetLights

  • Item Id - the unique number of the item, e.g. 5c8bdfb58ae862230019dc1f

  • Last edit date - the date and time the item was last modified, e.g. 15 March 2019 14:10

Usage​

This node is an input. It can be added to the segments of comparison nodes and functions.

alt text
alt text

If the property is Design code, it can be compared with a Global Unique Code node.

If the property is Item id, it can be compared with these nodes:

If the property is Last edit date, it can be compared with these nodes:

Options​

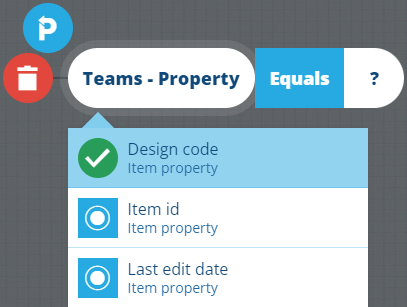

Select the node to access its options:

  • Open in Pathfinder - use the Pathfinder to examine the chosen property on a connected design/interface instead (by following Link attributes).

  • Delete - remove the node from the segment.

  • Choose the property to examine.

Example​

Fetch all assets that were edited today

In full detail:

Fetch items of the Assets interface where their Last edit date property is greater than 0 seconds from Start of Day

alt text
See JSON code
{
  "type": "Query",
  "properties": {
    "collectionCode": "Live",
    "dodiCode": "designInterfaces_assets"
  },
  "children": [
    {
      "type": "GreaterThan",
      "children": [
        {
          "type": "ItemProperty",
          "properties": {
            "itemPropertyName": "lastEditDate"
          }
        },
        {
          "type": "RelativeDateTime",
          "properties": {
            "relativeTo": "Now",
            "value": ["0.00:00:00.000"]
          }
        }
      ]
    }
  ]
}
