Relative Date node

​

Description​

The Relative date node represents the date occurring a number of days before/after a dynamic date, e.g. 2 days before end of week, 5 days from today

Usage​

The Relative date node is an input, so it can be added to the segments of comparison nodes.

alt text

It can be:

Configuration​

alt text

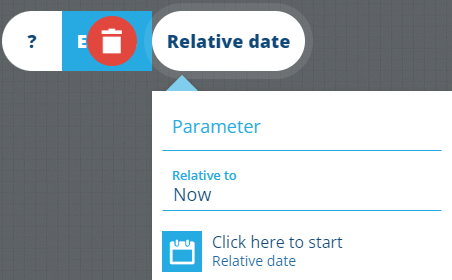

  • Parameter - select a compatible parameter to use as a placeholder value (if any have been defined in the query).
  • Relative to - the default value is Now. To change it, select it and choose from the list of dynamic dates.
alt text

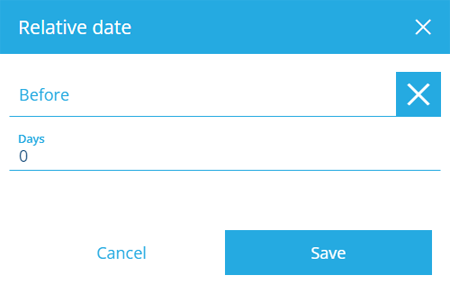

  • Relative date - enable Before if required and then input the desired number of days.
alt text

Example​

Fetch defects reported in the last 30 days

In full detail:

Fetch items of the Defects interface where their Reported Date attribute is greater than 30 days before now

alt text
See JSON code
{
  "type": "Query",
  "properties": {
    "collectionCode": "Live",
    "dodiCode": "designInterfaces_defects"
  },
  "children": [
    {
      "type": "GreaterThan",
      "children": [
        {
          "type": "Attribute",
          "properties": {
            "attributeCode": "attributes_defectsReportedDate"
          }
        },
        {
          "type": "RelativeDateTime",
          "properties": {
            "relativeTo": "Now",
            "value": ["-30.00:00:00.000"]
          }
        }
      ]
    }
  ]
}
