Time node

​

Description

The Time node represents one or more 24-hr time values, e.g. 09:00, 16:20

Usage

The Time node is an input, so it can be added to the segments of comparison nodes.

It can be:

• added to these comparison nodes:

  • ​ Equals
  • ​ Greater than
  • ​ Less than
  • ​ Not Equals

• compared against an Attribute node (of Time type)

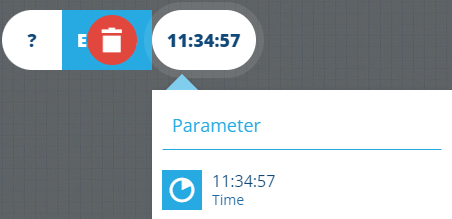

Configuration

• Parameter - select a compatible parameter to use as a placeholder value (if any have been defined in the query).

• Time - the default value is the current time. Select it and use the calendar picker to select one or more times.

Example

Fetch all working hours that end after 17:00

In full detail:

Fetch items of the Working Hours design where their End Time attribute is greater than 17:00:00

See JSON code

This code may reference designs, interfaces, attributes or items that don't exist in your Alloy database.

{
  "type": "Query",
  "properties": {
    "collectionCode": "Live",
    "dodiCode": "designs_hoursOfOperation_62fe229ade52b60342bd15cc"
  },
  "children": [
    {
      "type": "GreaterThan",
      "children": [
        {
          "type": "Attribute",
          "properties": {
            "attributeCode": "attributes_hoursOfOperationEndTime_62fe22e1de52b60342bd1a2e"
          }
        },
        {
          "type": "Time",
          "properties": {
            "value": ["1970-01-01T17:00:00.000Z"]
          }
        }
      ]
    }
  ]
}
