Example 1 - Check an attribute

Compare an attribute to a fixed value

This example demonstrates how to build the following query in the AQS Builder:

Fetch all defects that are awaiting inspection.

In AQS terms:

Fetch items of the Defects interface where their Status attribute equals Awaiting Inspection.

1 Configure the root node

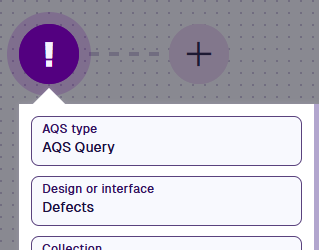

Select the root node and set:

• AQS type - AQS Query
• Design or interface - Defects
• Collection - Live
• Attributes - Title, Subtitle, Status

2 Add the comparison

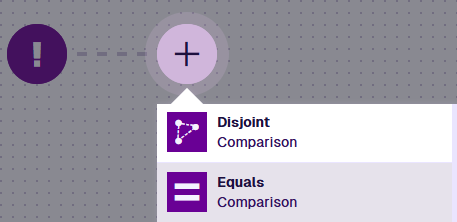

Select Add node and choose Equals.

3 Read the Status attribute

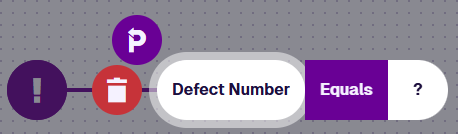

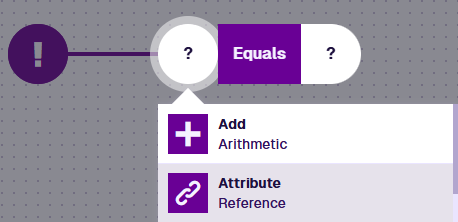

Select the left segment and choose Attribute. It defaults to the first suitable attribute on the design/interface being queried.

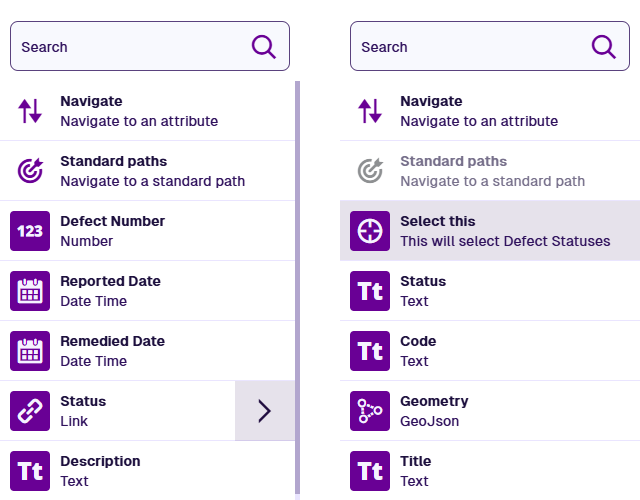

Select to open the Pathfinder. As Status is a Link attribute, select its arrow and then Select this.

4 Choose the status to match

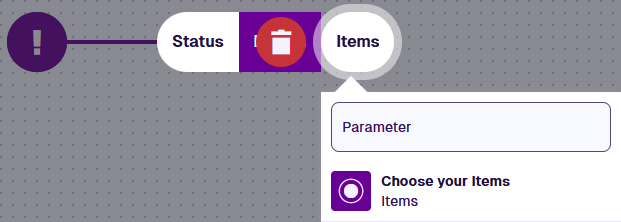

Select the right segment, choose Item, then Choose your Items.

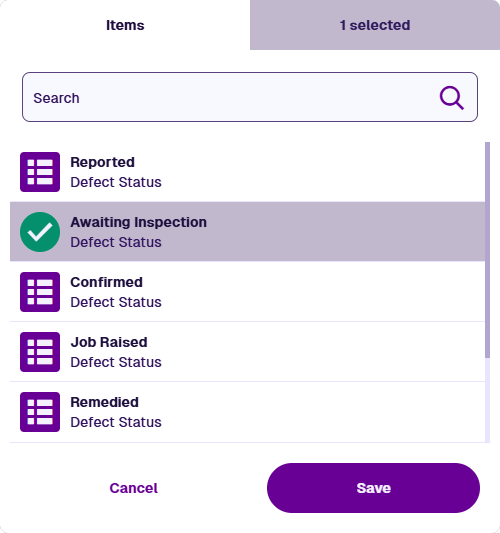

Choose Awaiting Inspection from the list of Defect Statuses items.

info

You can select more than one Defect Statuses item. The query will fetch any Defects item with any of your selected statuses.

5 Finish

Select Done (bottom-left) to finish.

See JSON code

This code may reference designs, interfaces, attributes or items that don't exist in your company project.

{
  "type": "Query",
  "properties": {
    "attributes": ["attributes_itemsTitle", "attributes_itemsSubtitle", "attributes_defectsStatus"],
    "collectionCode": "Live",
    "dodiCode": "designInterfaces_defects"
  },
  "children": [
    {
      "type": "Equals",
      "children": [
        {
          "type": "Attribute",
          "properties": {
            "attributeCode": "attributes_defectsStatus"
          }
        },
        {
          "type": "AlloyId",
          "properties": {
            "value": ["5c8bdfb58ae862230019dc1f"]
          }
        }
      ]
    }
  ]
}
