Example 4 - Parameters and AQS Join

Reuse a parameter across linked data

This example demonstrates how to build the following query in the AQS Builder:

Fetch all inspections assigned to a particular team.

In AQS terms:

Fetch items of the Inspections interface with a Link attribute that references a Teams item, which has a Team Name attribute equal to some text.

We'll use a TeamName parameter as a placeholder for "some text".

1 Configure the root node

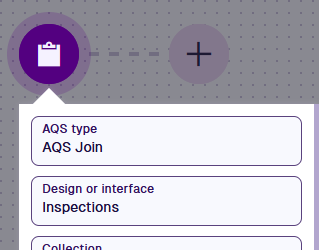

Select the root node and set:

• AQS Type - AQS Join
• Design or interface - Inspections
• Collection - Live
• Attributes - Title, Subtitle, Team Name

This query uses AQS Join because it returns data from the Teams items that the inspections link to, not just from the inspections themselves.

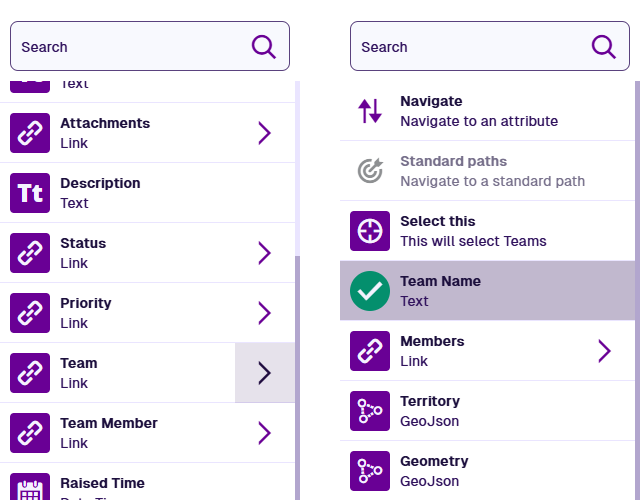

When selecting attributes in the Pathfinder, select to follow the Team Link attribute to the Teams design, then select its Team Name attribute.

2 Add the parameter

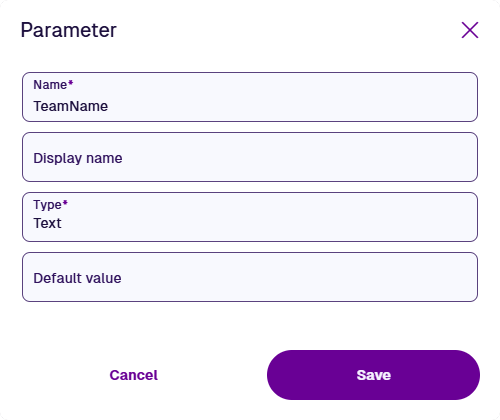

Select Add parameter and fill in the parameter's fields.

info

Enter a Display Name to change how the parameter is labelled. The underlying AQS code will still use Name.

3 Add the comparison

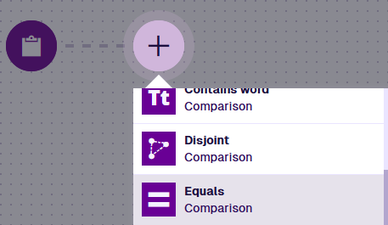

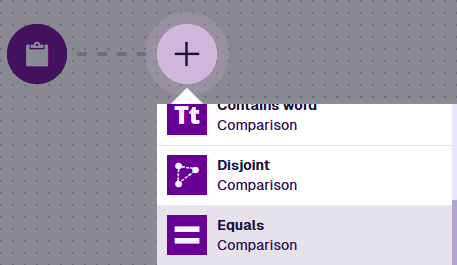

Select Add node and choose Equals.

4 Read the linked Team Name

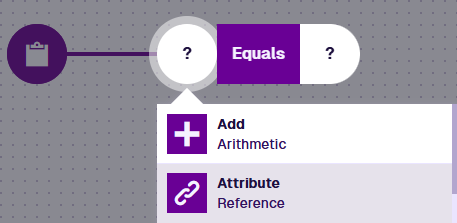

Select the left segment and choose Attribute.

Select and use the Pathfinder to reach the Teams design and select Team Name, as in step 1.

info

The shows that the attribute belongs to a connected design/interface rather than the one being queried.

5 Use the parameter

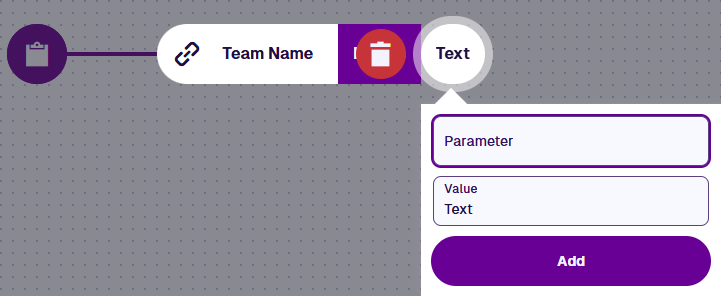

Select the right segment and choose Text. Select Parameter and choose TeamName.

6 Finish

Select Done (bottom-left) to finish.

See JSON code

This code may reference designs, interfaces, attributes or items that don't exist in your company project.

{
  "type": "Join",
  "properties": {
    "attributes": ["attributes_itemsTitle", "attributes_itemsSubtitle"],
    "collectionCode": "Live",
    "dodiCode": "designInterfaces_inspections",
    "joinAttributes": ["root.attributes_tasksTeam.attributes_teamsTeamName"],
    "parameters": [
      {
        "name": "TeamName",
        "type": "String"
      }
    ]
  },
  "children": [
    {
      "type": "Equals",
      "children": [
        {
          "type": "Attribute",
          "properties": {
            "attributeCode": "attributes_teamsTeamName",
            "path": "root.attributes_tasksTeam"
          }
        },
        {
          "type": "String",
          "properties": {
            "parameterName": "TeamName"
          }
        }
      ]
    }
  ]
}

Running the query

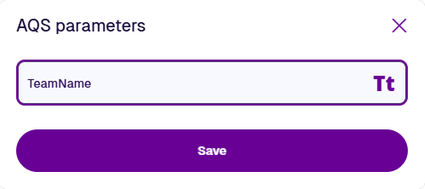

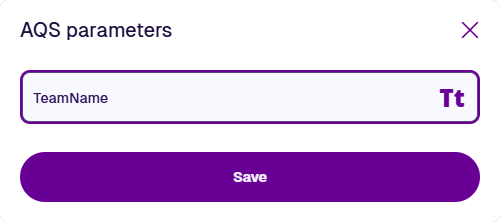

Whenever someone runs the query, they will be prompted to provide a value for the parameter.

info

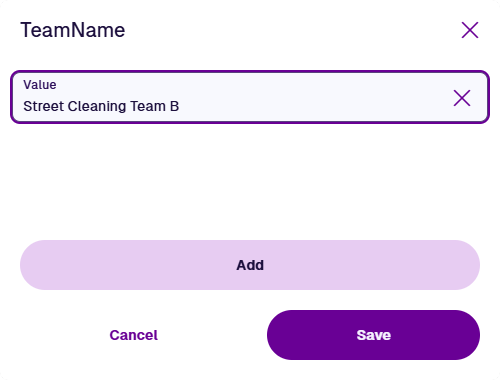

You can supply more than one value. The query will fetch inspections linked to a team matching any of them.
